Lab scale milling and processing - SLS

5 powder milling & processing solutions in one platform

R&D testing results are fully scalable to production size



Benefits of the Scalable Lab System (SLS)

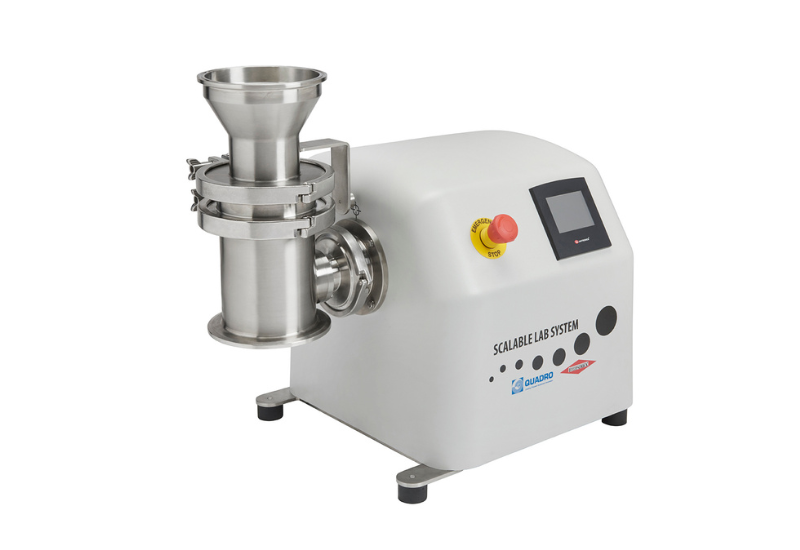

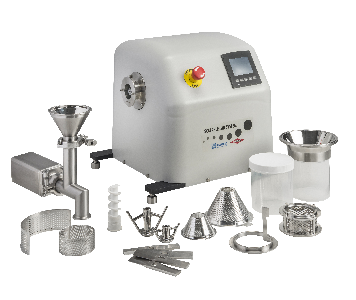

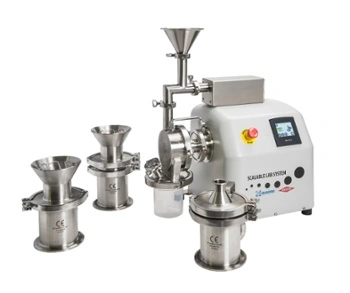

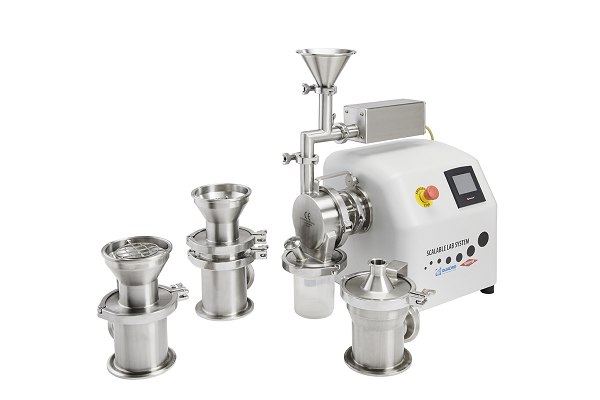

One platform with five milling and processing solutions.  Smart-Detect technology enables the heads to be swapped within seconds with no set up required.

SLS With All Heads

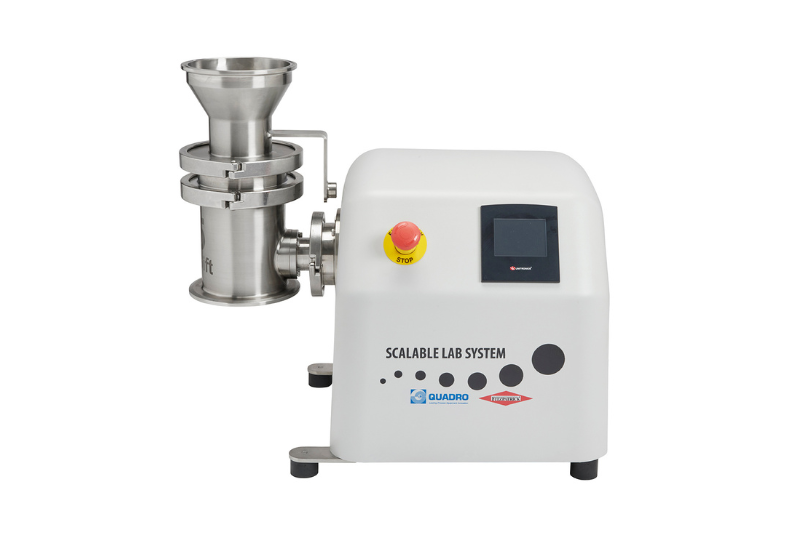

The SLS gives the reassurance that particle sizes and distributions achieved in the lab can be directly transferred to the production-scale equipment.  The operating parameters are simply transposed from small-scale to full-scale production.

Key size reduction and material processing technologies are possible from one single platform.  Using the interchangeable heads you can achieve labscale conical milling, hammer milling and screening.  The Smart-Detect technology recognizes the head being installed and adjusts the speed range accordingly. Its bench-top size is space-saving as well as cost-effective to own.

UPDATED Fitz Quadro SLS



Conical Milling

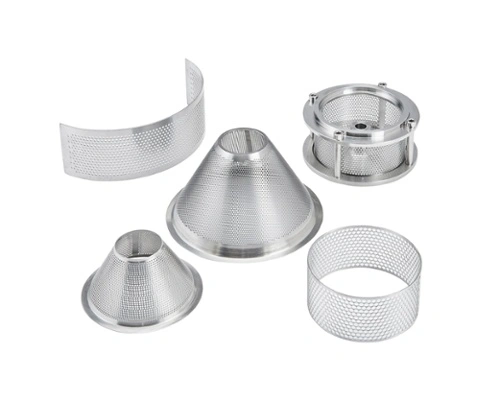

Wide range of screens and impellers offering tight granulometry

Discover

High Energy Milling

Predictable narrow PSDs ideal for API and fine chemical applications

Discover

Security Screening

Test in-line security screening and deagglomeration

Discover

Hammer Milling

High impact milling capabilities for finer particle size ranges

Discover

Supported Industries

These products are extensively used in the following applications:

OSD Pharma

Effectively conditioning powders for the pre-compression processing stage.

Discover

API Pharma

Achieve optimal PSD and desired production volumes along with Operator safety.

Discover

Nutraceuticals

High product quality relies on creating the ideal powder with on-target PSDs.

Discover

Food

High capacity milling under low heat and low energy conditions, with reduced dust and fines.

Discover

Chemical

We have proven success in even the most abrasive and corrosive environments.

Discover

SLS Comil®
Conical Milling

Benefits

High-performance conical milling - ideal for all milling applications in the lab.

Consistent repeatable results with tight granulometry.

Improve product quality with low levels of heat, dust and fines.

Fully scalable to the Quadro® Comil® production-scale mills.

Compact benchtop machine.

SLS Bulletin SLS Brochure SLS Product Overview

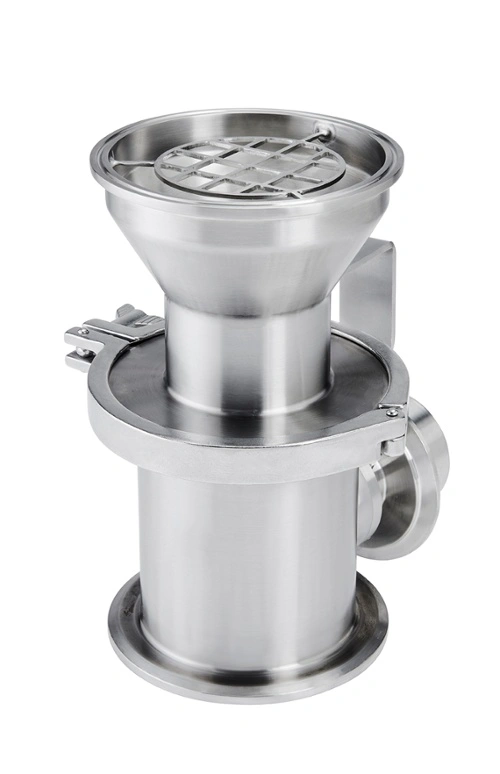

SLS Comil U5 Head
Features at a glance
CAPACITIES 50 g to 150+ kg/hr
PSD d50 150-300  µm
PSD d90 300-2000  µm

U5 Comil conical mill.

In-line spacerless design.

Wide range of screens & impeller choices to suit the application.

SLS High Energy
Conical Milling

Benefits:

High Energy conical milling.

Ideally suited to API and fine chemical processing - which require more energy.

Narrow PSDs with 30-70% more on-target particles.

Predictable, repeatable particle sizes.

Results fully scalable to the production-scale equipment.

SLS Bulletin SLS Brochure SLS Product Overview

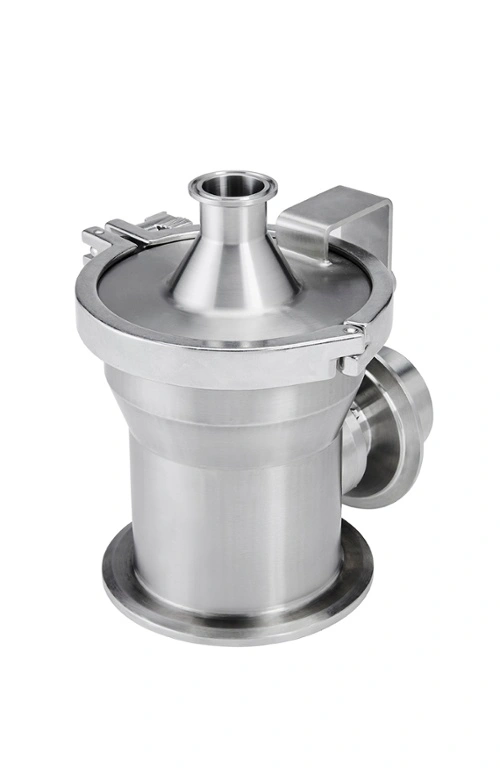

SLS Comil H5 High Energy Head
Features at a glance
CAPACITIES <1 kg to 100 kg/hr
PSD d50 20-150  µm
PSD d90 60-300  µm



H5 High-Energy Comil cone mill.

Integrated feed system for increased containment and predictability.

SLS FlexSift
Security Screening

Benefits:

In-line security screening.

Ideal for deagglomeration.

High capacity for efficient testing protocols.

Utilises standard equipment for fast clean down.

Fully scalable to the production size equipment.

Compact tabletop design, install within minutes.

SLS Bulletin SLS Brochure SLS Product Overview

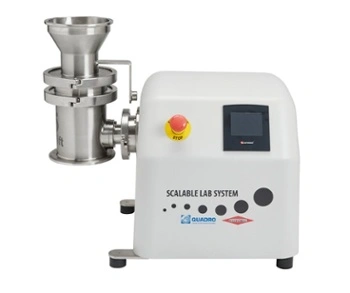

SLS FlexSift S5 Head
Features at a glance
CAPACITIES <125-2500+ kg/hr
MESH SIZE min 150 µm (100 mesh)
MESH SIZE max 6.4 mm (0.25")



S5 Quadro FlexSift

High capacity - typically 500 kg/hr.

Standard deagglomeration spoiler arm.

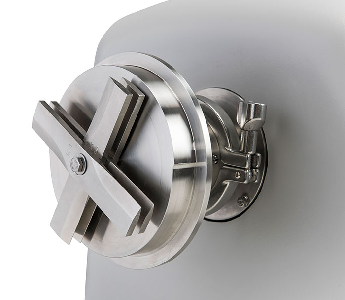

SLS FitzMill
Hammer Mill

Benefits:

High impact FitzMill hammer mill for achieving finer particle sizes.

Adaptable to specific material characteristics - including hard and fibrous products.

Handle samples as small as 5g without loss of yield or screen residue.

Fully scalable to the Fitzpatrick milling range.

SLS Bulletin SLS Brochure SLS Product Overview

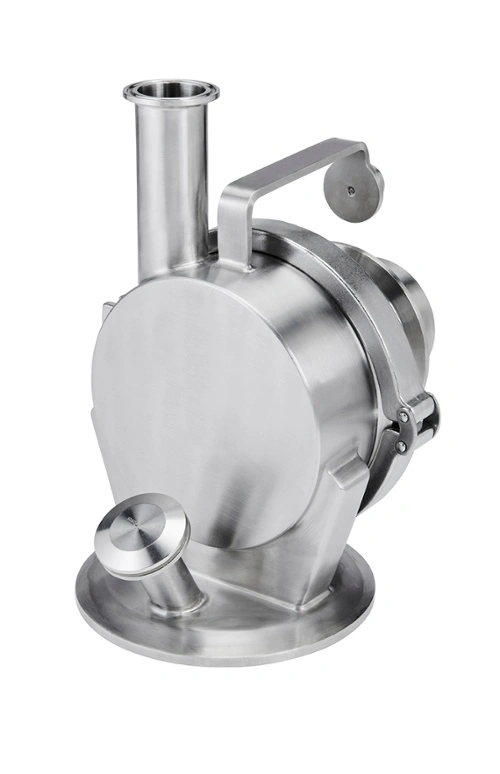

SLS FitzMill L1A Head
Features at a glance
CAPACITIES 5 g to 50+ kg/hr
PSD d50 20-300  µm
PSD d90 60-2000  µm



FitzMillTM L1A hammer mill.

2 blade styles - impact & cutting.

Metered feed control design scalable to production.

xxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh.

Ut wisi enim ad minim veniam, quis nostrud exerci tation ullamcorper suscipit lobortis nisl ut aliquip ex ea commodo consequat.

Duis autem vel eum iriure dolor in hendrerit in vulputate velit esse molestie consequat, vel illum dolore eu.

Features at a glance

Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy. nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat.

Ut wisi enim ad minim veniam, quis nostrud exerci tation ullamcorper suscipit lobortis nisl ut aliquip ex ea commodo consequat.

In detail

Scalable Lab System (SLS)

Here is a sample of what we have designed and built.

As well as meeting the requirements of cGMP, we want to ensure that the machines we develop are well designed and safe for the user, so we follow a variety of specific industry directives.

All Quadro® products are designed and manufactured in a facility with an ISO 9001:2015 accredited Quality Management System.

The scope of this Quality Management System applies to all processes and activities which are controlled, managed and performed by employees within the Quadro® company.

The current Certificate of Registration, reference Certificate No: CERT-0123529, has been issued by SAI Global and is effective to September 3, 2021.

 ISO-9001-LOGO-Horizontalweb

We offer a complete selection of ATEX-approved mills that meet the ATEX European Union directive for products used in potentially explosive atmospheres.

Our equipment is designed to handle the toughest milling applications, which is why professionals around the world choose us.   With models specifically designed to meet ATEX Zone 0/20 (1GD) or 1/21 (2GD) requirements, we provide the most comprehensively safe mills in the industry.

                         accred-atex-web   accred-ce_white-web

All equipment destined for Europe is CE marked and comes with an EU Declaration of Conformity.  It is certified to comply with the Machinery Directive 2006/42/EC,  the Low Voltage Directive 2014/35/EU and the Electromagnetic Compatibility Directive 2014/30/EU.

Our equipment is designed to meet a variety of international safety standards, so whichever country you are in we can be compliant.

Discover why the Scalable Lab System (SLS) from Quadro is world-leading and has become the equipment of choice for many pharmaceutical companies around the world.
